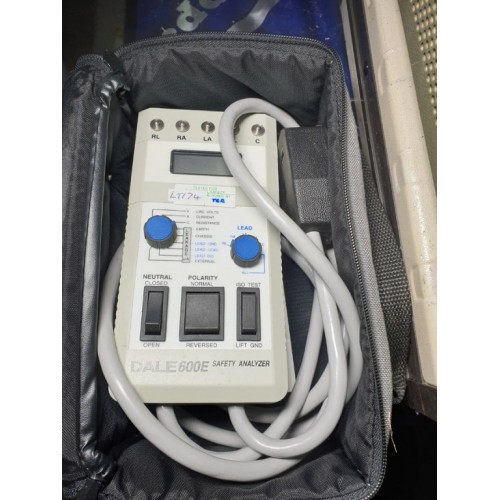

PREOWNED Dale Technology 600 Electrical Safety Analyzer
$895.00
Ex Tax: $895.00
Ex Tax: $895.00
PREOWNED UNIT
WARRANTY: One year warranty
SALES LEAD TIME: 14-21 Days (Unit will be sent out after purchase to a calibration lab for a fresh calibration certificate)
ACCESSORIES: Soft Carrying Case, Test Lead, Operator Manual, Current Calibration Certificate
DESCRIPTION
The DALE600 Electrical Safety Analyzer is the industry's lowest priced full function Electrical Safety Analyzer. Unique to the DALE600 is its capability to make a broad range of external measurements. A clearly labeled single master function switch guides the user through a complete measurement procedure.
The DALE600 Electrical Safety Analyzer is the industry's lowest priced full function Electrical Safety Analyzer. Unique to the DALE600 is its capability to make a broad range of external measurements. A clearly labeled single master function switch guides the user through a complete measurement procedure.
The DALE600 measures Line Voltage, Instrument Current, Ground Resistance, Earth and Chassis Leakage Current, Patient Lead-to-Ground, Lead-to-Lead and Lead Isolation (M.A.P.) Current, External Gradient, Probe and Transducer Isolation Current and Point-to-Point Resistance.
The device also tests all 120-volt standard wall outlets for the proper wiring. The green and an amber light indicate five normal or fault conditions.
Heavy-duty switches change polarity, open and close the neutral and select Chassis or Earth Leakage Current measurements. A four-wire Kelvin bridge eliminates reading errors in resistance due to cable length and contact resistance. True RMS measurements are provided for all current readings. The AAMI test load is utilized.
The DALE600 has five (5) EKG lead connectors that allow for any type of lead connection.
FEATURES:
-
Small, lightweight, self-contained portable instrument
- Master range meter delivers accurate measurment for each test
- Accurate test measurements with 4-wire Kelvin bridge
- Test method complies with AAMI load per ANSI/AAMI ES1-1993
- Leakage Current can be measured in Open/Closed Neutral, Normal/Reversed Polarity and Open/Closed Ground.
- All Leakage Current measurements are displayed directly in µAmps.
- Broad range of external measurements
- Five (5) EKG Lead Connectors
- The DALE600 is designed for 120 V operation
SPECIFICATIONS
Mains Voltage: 117 Volts, 50/60 Hz
Instrument Current:
Range: 0 - 19.99 Amps.
Resolution: 10 mA
Accuracy:5 % R
Resolution: 10 mA
Accuracy:5 % R
Ground (Earth) Resistance
Range: 0 - 1.99. Accuracy: 1% R +/- 1 LSD
2 - 19.99. Accuracy: 2 % R +/- 1 LSD
Resolution: 10 mOhms
Leakage Current
Range: 0 - 1999 µAmp
Resolution: 1 µAmp
Accuracy: 1% R +/- 1 LSD
Range: 0 - 1999 µAmp
Resolution: 1 µAmp
Accuracy: 1% R +/- 1 LSD
Frequency:
DC & 25 Hz - 1kHz: 1.0% R
1KHz - 100 KHz: 2.5% R
100 KHz - 1 MHz: 5% R
DC & 25 Hz - 1kHz: 1.0% R
1KHz - 100 KHz: 2.5% R
100 KHz - 1 MHz: 5% R
Controls
1. Function Switch - 9 position rotary
2. Lead Switch - 6 position rotary
3. Neutral Switch - 2 position rocker (Open/Closed)
4. Polarity Switch - 3 position rocker (Normal/Off/Reversed)
5. Leakage Switch - 2 position rocker (Chassis/Earth)
DUT Power
117 VAC, 16 Amps@ 120 V, 10 Amps @ 230 V
Physical Size:
4.0 x 7.8 x 1.6 inches (102 x 196 x 41 mm)
